LRCAL IR Calibrator with Black Body
307, Shankala Industrial Estate, Gogatewadi, Off Aarey Road, Goregaon East, Mumbai - 400063, India
Tel: +91-22-29275496, Fax: +91-22-29275558
The LR- Cal temperature calibrators with black body (black body) are suitable for the calibration of non-contact measuring infrared thermometers.
With black spotlight, for calibrating infrared thermometers
Including precision reference probe (Pt 100 4-wire, Class A)
Includes digital display
Portable Temperature Calibrator
"Black Body" for Infrared Thermometer

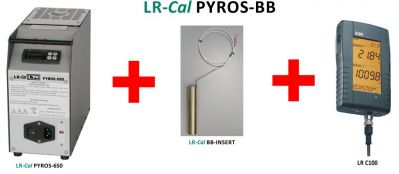

Model LR- Cal PYROS-BB
Range + 24 ° C ... + 650 ° C, with Black Body
For the calibration of infrared thermometers
The compact temperature calibrator LR- Cal PYROS-BB serves as a temperature source and reference device, for the testing and calibration of non-contact measuring infrared temperature measuring devices of all kinds.
Temperature range + 24 ° C ... + 650 ° C
Compact and light
Power supply 115 + 230 VAC (switchable)
Including precision reference probe Pt 100 Class A and separate digital display
Block insert, coated with mat-rough graphite paint, with high emissivity
Specification of temperature calibrator LR- Cal PYROS-BB
temperature range + 24 ° C ... + 650 ° C
reference probe Resistance sensor Pt 100 4-wire class A
With sep. High-resolution digital display
Stability of controlled temperature ± 0.3 ° C
heating From + 50 ° C to + 650 ° C: 35 min.
Cooling From + 650 ° C to + 100 ° C: 60 min.
Black spotlight Special block insert with black body
Interior coated with matt-rough graffit paint
Outer diameter of insert: 25.5 mm
Depth 150 mm
Internal diameter 70 mm, stepped,
Incl. Recording for the reference sensor
power supply 115 + 230 VAC switchable
input 600 W
housing material metal
mass Approx. 6 kg
dimension 130 x 260 x 280 mm
All temperature range data refer to an ambient temperature of + 20 ° C. The accuracy data refer to an ambient temperature of + 23 ° C and are guaranteed for 1 year.
