Smart Pressure Transmitters
DIFFERENTIAL / RELATIVE / ABSOLUTE / DIRECT MOUNTED / REMOTE DIAPHRAGM SEAL
For Pressure / Flow / Level
Since 1989
India
_______________________________________________________________________________________________________________________________________________________
Address:

Adarsh Industries
307, Shankala Industrial Estate,
Gogatewadi, Off Aarey Road,
Goregaon East,
Mumbai - 400063
India
Tel: +91-22-29275496, Fax: +91-22-29275558
Email: sales@adarshpressuregauge.com
Web: www.adarshpressuregauge.com

SEND INQUIRY
Email: sales@adarshpressuregauge.com  or Call +91-22-29275496 Fax +91-22-29275558
or
Click here to send inquiry by online form

Send you inquiry with details like :
pressure range:
accuracy required :
application or or any other special requirements you have.
Features :
  • Standard accuracy of 0.065% / 0.04% (optional)
  • Range 100mmwc to 6,000 psi
  • Measures liquid, gas or vapor
  • Hazardous area approvals (ATEX, FM, CSA)
  • CEI IP67 and Nema 4X
  • Minimum environmental influence
  • HART bilingual communications protocol and FOUNDATION fieldbus and Profibus compatibility
  • Application flexibility
  • Programmable output Linearization Function
  • Burnout current flexibility
  • Dry calibration without reference pressure
  • 100:1 Turn down ration (rangeability)

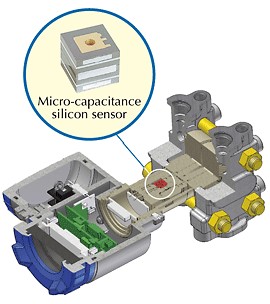

  • Micro Capacitance Silicon Sensor
_______________________________________________________________________________________________________________________________________________________________
DIFFERENTIAL PRESSURE TRANSMITTER
FKC MODEL


RELATIVE PRESSURE TRANSMITTER
FKG MODEL
ABSOLUTE PRESSURE TRANSMITTER
FKA MODEL
Model
FKC
FKG
FKA
Range
kPa (mbar)
1(10), 6(60), 32 (320),
130 (1300), 500(5000),
3000(30000), 20000(200000)
kPa (bar)
130 (1,3), 500 (5), 3000 (30), 10000 (100), 50000 (500)
kPa (bar)
16 (0,16), 130 (1,3), 500 (5)
3000 (30), 10000 (100)
Standard Rangeability
100:1 depending of the span
Accuracy of adjusted span
Upto 0.04%/Standard 0.065%
Temperature Limits
-40 to 120C (process)/-40 to +85C (Ambient)
Wetted Parts
SS316L / Hastelloy C / Monel / Tantalum
Output
4-20mA dc + HART protocol
Power Supply
10.5 to 45 VDC
Communication
Fuji / Hart protocols (standard) / Fieldbus Foundation H1 protocols (option)
Environmental Protection
IEC IP67 and NEMA 4X
Hazardous Area certifications
Flame proof areas and intrinsic safety (ATEX, FM, CSA, etc)
Available Functions
1/ Burnout according NAMUR NE43 recommandation
2/ Linearization function (14 points) to linearize the output signal
_______________________________________________________________________________________________________________________________________________________________
DIRECT MOUNTING RELATIVE PRESSURE
FKP MODEL
DIRECT MOUNTING ABSOLUTE PRESSURE
FKH MODEL
Model
FKP
FKH

Range
kPa (bar)
130 (1,3), 500 (5), 3000 (30),
10000 (100)
kPa (bar)
130 (1,3), 500 (5), 3000 (30)

Standard Rangeability
16:1 depending of the span
Accuracy of adjusted span
                  0.1%                                      0.2%
Temperature Limits
-40 to 100C (process)/-40 to +85C (Ambient)
Wetted Parts
SS316L
Output
4-20mA dc + HART protocol
Power Supply
10.5 to 45 VDC
Communication
Fuji / Hart protocols (standard) / Fieldbus Foundation H1 protocols (option)
Environmental Protection
IEC IP67 and NEMA 4X
Hazardous Area certifications
Flame proof areas and intrinsic safety (ATEX, FM, CSA, etc)
Available Functions
1/ Burnout according NAMUR NE43 recommandation
2/ Linearization function (14 points) to linearize the output signal
_______________________________________________________________________________________________________________________________________________________________
REMOTE SEALS
FKB/D/M MODEL
LEVEL TRANSMITTER
FKE MODEL
DIRECT MOUNTING REMOTE SEAL
FKH/P MODEL
Model
FKB/D/M
FKE
FKH/P
Range
Depending of transmitter version
kPa (mbar)
32 (320), 130 (1300), 500 (5000)
kPa (bar)
130 (1,3), 500 (5), 3000 (30)
10000 (100)
Standard Rangeability
100:1 depending of the span      100:1 depending of the span         16:1 depending of the span
Accuracy of adjusted span
0.065% (DP & relative press.),      0.165% /(0,1% optional)           0.1% or 0.2%
0,2% (absolute pressure)
Temperature Limits
-90 to +400C (process)                   -40 to +150C (process)           -40 to +150C (process)
-40 to +85C (ambient)                     -40 to +85C (ambient)            -40 to +85C (ambient)
Wetted Parts
SS316L / Hastelloy C / Monel / Tantalum
Output
4-20mA dc + HART protocol
Power Supply
10.5 to 45 VDC
Communication
Fuji / Hart protocols (standard) / Fieldbus Foundation H1 protocols (option)
Environmental Protection
IEC IP67 and NEMA 4X
Hazardous Area certifications
Flame proof areas and intrinsic safety (ATEX, FM, CSA, etc)
Available Functions
1/ Burnout according NAMUR NE43 recommandation
2/ Linearization function (14 points) to linearize the output signal
APPLICATION INDUSTRY
  • OIL & GAS
  • NUCLEAR
  • ENERGY METERING
  • FOOD & BEVERAGE
  • PHARMACEUTICAL
  • COSMETIC
  • CHEMICAL
  • PAPER
  • WATER & ENVIRONMENT
  • VARIOUS PROCESS

Other Products

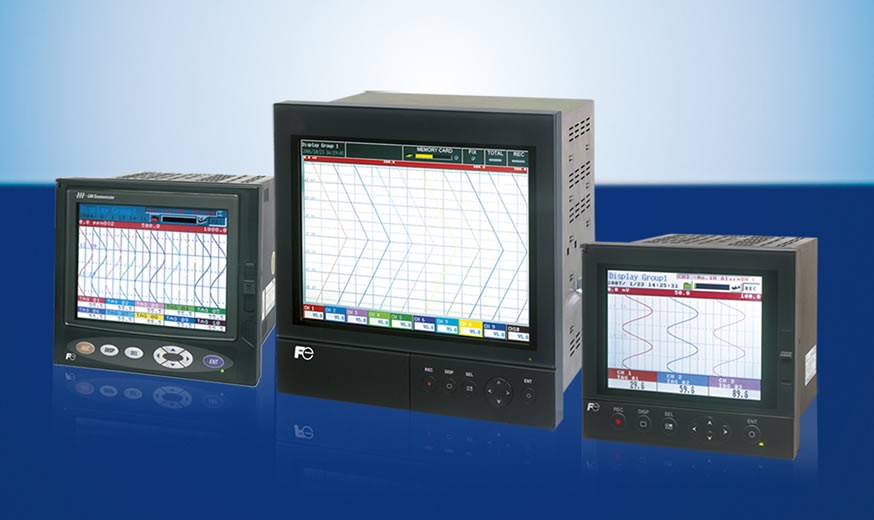

Paperless Recorders / Inkjet Recorder
