Digital Maniofld Gauge
Since 1989

Adarsh Industries
307, Shankala Industrial Estate,
Gogatewadi, Off Aarey Road,
Goregaon East,
Mumbai - 400063
Tel: +91-22-29275496, Fax: +91-22-29275558

Tired of inaccurate gas filling , faulty readings shown by mechanical manifold gauges, switch to Digital Manifold Gauges. Digital Manifold Gauges offer great value for money by offering improved accuracy.  The digital freon gauges can be used to accuractly show pressure with finer resolutions upto 0.00 in bar and 1 in psi. They also show the corresponding temperature readings in deg C or F against corresponding pressures for each freon refrigerant.  Different freon gases can be selected depending on use R22, R134a, R404a, R407c, R410a. They also feature a backlight so the readings can be seen properly.

* Selectable refrigerations R22, R134a, R404a, R407c, R410a
* Selectable units bar / psi / MPa / KPa
* Shows corresponding pressure to temperature readings also in C / F
* Zero off-set button
* Highly Accurate compared to mechanical Gauges
* Fine Resolution
* Battery Operated
* 125% Overload Capacity

Specifications for Digital Manifold Gauge / Digital Freon Gauge / Digital Refrigerant Gauge

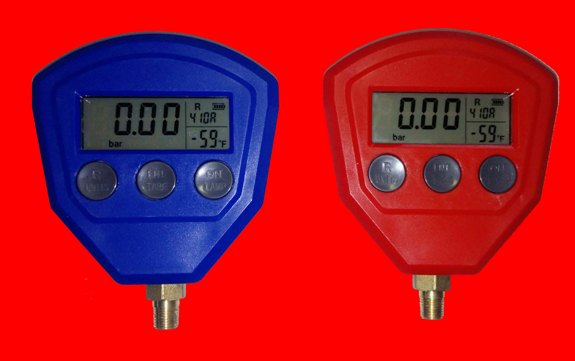

Model : HS-5100L (blue) and HS-5100H (red)
Display : LCD with white backlight
Battery : AAA batteries x 3nos
Accuracy : +/- 1% or better
Max Rated Pressure : 0-4MPa / 40 bar / 500 psi
Overload Capacity : 125% of FS
Applicable Refrigerant :  R22, R134a, R404a, R407c, R410a
Units : bar / psi / MPa / KPa
Temperature Units : deg C / deg F ( different for each gas)
Connection : 1/8" npt Male

digital manifold gauge for freon refrigerant
