LRCAL LPC 300 Elektronic Pressure Calibrator

Documenting Process Calibrator
  • Electronic Pressure Calibrator
  • Documenting Process Calibrator
  • Accuracy 0.025% FS
  • Pressure Ranges from 250 mbar to 8,000 bar
  • Changeable pressure sensors,
  • Measurement of current and voltage
Datasheet
Manual
Model LR-Cal LPC 300

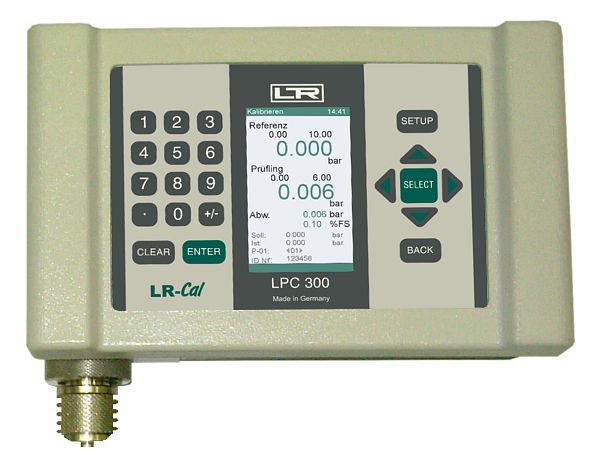

The electronic pressure calibrator LR-Cal LPC 300 is used for high precision calibration of pressure instruments, e.g. pressure gauges, pressure transmitter, digital manometer, pressure switches, overpressure protection valves, etc.
The LR-Cal LPC 300 is a very user-friendly, accurate and compact solution for pressure comparison calibrations. The built-in reference sensor LR-Cal LPC-S is changeable; several pressure ranges can be covered with one LR-Cal LPC 300 unit (up to 10).
All standard pressure ranges between 0...250 mbar (0...4 psi) and 0...1000 bar (0...14500 psi) are available as well as vacuum and absolute pressure ranges in accuracy 0.025% FS. Furthermore, ranges up to 8000 bar (116000 psi) are available with accuracy 0.1% FS.
The electronic pressure calibrator LR-Cal LPC 300 measures pressure, volts and milliamps and supplies 24 VDC as source for transmitter. Calibration procedures can be pre-defined and used for calibrations on site. The LR-Cal LPC 300 is featured with USB- and RS232-interfaces and is powered by a chargeable Lithium-Ion battery pack (no "memory effect").
Description
Description of Pressure Calibrator LR-Cal LPC 300
designed from professionals for professionals
  • Accurate, high resolution, compact, rigid
  • Pressure ranges from 0...250 mbar to 0...8000 bar, as well as vacuum, compound and absolute ranges
  • Changeable reference pressure sensors LR-Cal LPC-S
  • All standard pressure units (plus one self-definable)
  • Conversion pressure to volt/milliamps and vice versa
  • Stores calibration data (plus time stamp from integrated real time clock)
  • Pressure switch test function
  • Menu-driven operating in several languags (English, Italian, French, Spanish, German)
  • Large illuminated colour display
  • Lithium-Ion battery powered
  • Power supply 24 VDC output for pressure transmitters
  • USB- and RS232-interface
  • Calibration certificate, traceable to national standard included in scope of standard delivery (for pressure, current and voltage)
The reference pressure sensors LR-Cal LPC-S are equipped with a welded stainless steel membrane, they are suitable for aggressive media, which do not destroy stainless steel 1.4571.
The electronic pressure calibrator (documenting process calibrator) LR-Cal LPC 300 can be operated in three different modes:
Measuring Mode:
First, the operator defines the unit under test (analogue or digital, pressure range, accuracy class, pressure unit, gauge or absolute pressure, gaseous or fluid calibration medium, power supply 24 VDC on or off).
Then, the comparison calibration can be made: The display shows the pressure range of the LR-Cal LPC-S reference sensor, the true pressure measured by the LR-Cal LPC 300, the pressure range of the unit under test, the output signal of unit under test (measured if it is a transmitter, to be entered manually if it is an analogue pressure gauge), deviation in selected pressure unit of unit under test, deviation in percentage of full scale value of unit under test.
With one view the operator sees wether the unit under test is within it's specification (accuracy class) or not - at every test point.
15 different pressure units are available for selection, plus an user-definable pressure unit. The resolution adjustment (decimal point setting) can be made very comfortable.
Calibration Mode:
In this mode, calibration procedures can be pre-defined, incl. management of units under test. One procedure has following data: Same like "Measuring Mode", plut Calibration Number (program no.), Serial number of unit unter test, location number of unit under test, test pressure points (up to 32 for each unit under test), dwell time (seconds) between test pressure points.
Up to 16 units under test with each 32 test points can be managed by the LR-Cal LPC 300 at a time.
Later on, it can be worked on the pre-defined calibration procedures, e.g. on site. The values are saved in the internal memory of the LR-Cal LPC 300 and can be transmitted to a PC via the USB- or the RS232-interface.
Also, in this "Calibration Mode", the operator can see on one view wether the unit under test is within it's specification or not.
With the optional PC software LPC-Cal the calibration data can be downloaded to a Windows-PC and printed out (via MS-Excel).
Pressure Switch Test Mode:
After specification of the unit under test (pressure range, power supply 24 VDC On/Off), the electronic pressure calibrator LR-Cal LPC 300 shows the actual status of the pressure switch.
Settable basic parameters:
Several basic parameters can be entered into the LR-Cal LPC 300, e.g. ambient temperature, fluid level difference between reference and unit under test, Language (English/French/Italian/Spanish/German), Setting of the realtime clock, Setting of the display, Setting of the powersafe function, Indicating battery level, Tara value (offset), Indicating Min/Max values, Setting/indicating alarm values, Digital software filter, USB- and RS232 settings.
Scope of standard delivery:
  • Pressure calibrator LR-Cal LPC 300 with built-in battery pack (Li-Ion)
  • Mains charger 110...230 VAC with EU/UK/US adapters
  • Set of measuring leads (red/black)
  • Swivel nut for fixing the reference sensor on calibrators housing
  • Certificate of Calibration for pressure, volts and milliamps
  • Operating manual (English or German)
  • Protection caps (IP 54) for measuring plugs
  • Windows-PC Software LPC-Cal
  • Transit case with foams
  • Extension cable for connecting reference sensor (if reference sensor shall be operated seperate from calibrator, in every case necessary for high pressure ranges above 1000 bar)
  • Reference sensor LR-Cal LPC-S free of oil (some ranges)
  • DKD-/DAkkS Certification for pressure reading
Pressure Ranges
Pressure Ranges of Reference Sensors LR-Cal LPC-S
Available standard pressure ranges LR-Cal LPC-S
Accuracy 0.025% FS
Pressure Range [bar]
Kind of pressure
overpresusre [bar]
burst pressure [bar]
0...0.25
gauge
1.6
2.4
0...0.4
gauge or absolute
2
2.4
0...0.6
gauge or absolute
4
4.8
0...1
gauge or absolute
5
6
0...1.6
gauge or absolute
10
12
0...2.5
gauge or absolute
10
12
0...4
gauge or absolute
17
20.5
0...6
gauge or absolute
35
40
0...10
gauge or absolute
35
42
0...16
gauge or absolute
80
96
0...25
gauge or absolute
80
96
0...40
gauge
80
96
0...60
gauge
120
550
0...100
gauge
200
800
0...160
gauge
320
1000
0...250
gauge
500
1200
0...400
gauge
800
1700
0...600
gauge
1200
2400
0...700
gauge
1200
2400
0...1000
gauge
1500
3000
-0,4...0
gauge
2
2.4
-0,6...0
gauge
4
4.8
-1...0
gauge
5
6
-0.25...+0.25
gauge
1.6
2.4
-0.4...+0.4
gauge
2
2.4
-0.6...+0.6
gauge
4
4.8
-1...+1.5
gauge
10
12
-1...+3
gauge
17
20.5
-1...+5
gauge
35
42
-1...+9
gauge
35
42
-1...+15
gauge
80
96
-1...+20
gauge
80
96
-1...+24
gauge
80
96
-1...+39
gauge
80
96
Available High-Pressure-Ranges LR-Cal LPC-S
Accuracy 0.1% FS
Pressure Range [bar]
Kind of pressure
overpressure [bar]
burst pressure [bar]
0...1600
gauge
2300
4000
0...2500
gauge
3500
4000
0...4000
gauge
5000
8000
0...5000
gauge
6000
10000
0...6000
gauge
7000
11000
0...8000 (Genauigkeit 0,2% v.E.)
gauge
10000
12000
Stated accuracies includes linearity, hysteresis and repeatability.
Datasheet
Manual
Other Pressure Calibrator Model overview
LR-Cal
LPC 200-T
Pressure and Temperature Calibrator
Accuracy 0.025% FS / 0.05C
Pressure Ranges from 400 mbar to 6,000 bar
Temperature -10...+50C
Changeable pressure sensors, data logging
LR-Cal
LPC 200
Electronic Pressure Calibrator
Accuracy 0.025% FS
Pressure Ranges from 400 mbar to 6,000 bar
Changeable pressure sensors
LR-Cal
TLDMM
Precision Digital Reference Pressure Gauge
Accuracy 0.05% FS
Pressure Ranges from 1 bar to 2,000 bar
LR-Cal
LDM 80
Pressure Calibrator and Data Logger
Accuracy 0.1% FS or 0.2% FS
Pressure Ranges from 100 mbar to 2,000 bar
Incl. USB interface, optional WIRELESS
With indication of medium temperature.
Optional: version with switch test functionality
LR-Cal
TLDMM-A01
Digital Test Pressure Gauge
Accuracy 0.1% FS
Pressure Ranges from 1 bar to 2,000 bar
LR-Cal
TLDMM-A02
Digital Test Pressure Gauge
Accuracy 0.2% FS
Pressure Ranges from 1 bar to 2,000 bar
LR-Cal
LDM 70-E25
Digital Test Pressure Gauge
Accuracy 0.125% FS
Pressure Ranges from 0.1 bar to 600 bar
LR-Cal
LDM 70-K50
Digital Test Pressure Gauge
Accuracy 0.25% FS
Pressure Ranges from 1.6 bar to 600 bar
LR-Cal
DFP
Digital Test Pressure / Force Gauge
Accuracy 0.1% FS
Pressure Ranges from 10 bar to 2,000 bar
Scaleable display in kN, t, kg, daN
LR-Cal
PC4
Pressure Calibrator for low pressure (pneumatic)
Accuracy 0.1...0.2% FS
Pressure Ranges from 10 mbar to 1000 mbar
Integrated manual pressure source (pump)
For comprehensive information about a model, please click on the related product image.
